UNIT : mm

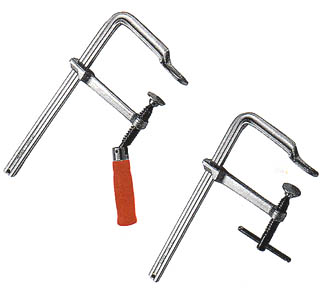

GOOD HAND REG-C & G-CS series clamps have the same advantages as G-C & SG-C clamps. REG-C clamps are equipped with a plastic handle which can be swing clicked, whilst G-CS clamps are equipped with a T-Spindle handle. All other specifications of these 2 types of clamps are the same.

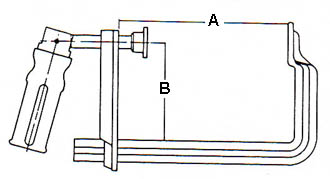

Item No. 型号		SPAN x DEPTH m.m.长度x喉深	RAIL m.m.主体宽x厚	WEIGHT kg自重		PACK包装 pcs/ctn
GH-REG16C	GH-G16CS	160x80	16x7.5	0.59	0.50	10
GH-REG20C	GH-G20CS	200x100	19.5x9.5	0.98	0.88	10
GH-REG25C	GH-G25CS	250x120	22x10.5	1.33	1.23	10
GH-REG30C	GH-G30CS	300x140	25x12	1.98	1.85	10
GH-REG40C	GH-G40CS	400x175	27x13	2.70	2.57	10
GH-REG60C	GH-G60CS	600x175	27x13	3.19	3.06	10
GH-REG80C	GH-G80CS	800x175	27x13	3.68	3.55	6
GH-RESG40C	GH-SG40CS	400x120	25x12	2.04	1.91	10
GH-RESG50C	GH-SG50CS	500x120	25x12	2.25	2.12	10
GH-RESG60C	GH-SG60CS	600x120	25x12	2.46	2.33	10
GH-RESG80C	GH-SG80CS	800x120	27x13	3.40	3.26	6
GH-RESG100C	GH-SG100CS	1000x120	27x13	3.88	3.75	6
GH-RESG125C	GH-SG125CS	1250x120	27x13	4.50	4.36	4
GH-RESG150C	GH-SG150CS	1500x120	27x13	5.11	4.98	4
