F型夹钳
G-L and G-LH

UNIT : mm

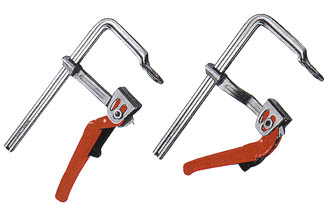

GOOD HAND G-L & G-LH series clamps are equipped with a quick release lever which can tighten & loosen workpiece easily, prevent overloading and resist vibration.

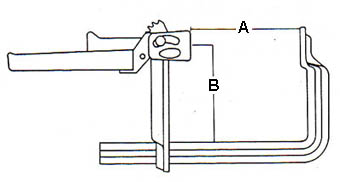

Item No. 型号 SPAN x DEPTH
m.m. 长度x喉深		 RAIL
m.m.主体宽x厚		 WEIGHT
kg自重		 PACK包装
pcs/ctn只/箱
GH-G 16L GH-G 16LH 160x80 16x7.5 0.54 10 40
GH-G 20L GH-G 20LH 200x100 19.5x9.5 1.00 1.02 10
GH-G 25L 250x120 22x10.5 1.62 10
GH-G 25LH 22.5x10.5 1.63 20
GH-G 30L GH-G 30LH 300x140 25x12 2.42 2.44 10
GH-G 40L GH-G 40LH 400x120 25x12 2.55 2.57 10
GH-G 50L 500x120 25x12 2.76 10
GH-G 60L 600x120 25x12 2.97 10
GH-G 80L 800x120 27x13 3.08 6
GH-G 100L 1000x120 27x13 4.30 6
