推拉式夹钳

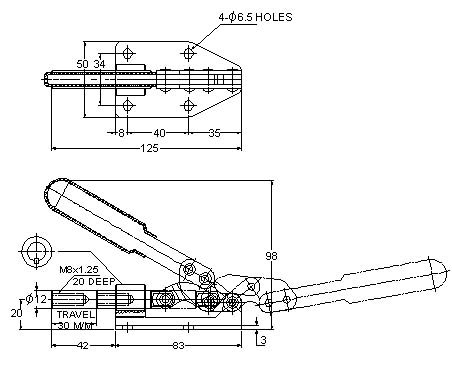

GH-36020 and GH-36020-K

UNIT : mm

HOLDING CAPACITY : 180 kg MAX.
WEIGHT : 345g HANDLE MOVES 144.5^o
PLUNGER TRAVEL : 30m/m
*Accepts All M8x1.25P spindles,supplied with GH-SA-085012 and red vinyl hand grip. *GH-36020-K has a key way which can keep the plunger going back & forth without rotation. *The clamps can be used as locators in Jigs & fixtures.

夹持力: 136 kg MAX.
自重: 300g 手把移动角度180^o
行程: 32m/m
压头螺丝代码： GH-SA-085012
