*Plunger locks at both ends of travel. *High strength steel construction and precisely broached body for square plunger, allow these clamps to be used as pin locating gauges. *Hardened steel pins and bushings at pivot points. *Clamp can be mounted using base (supplied) or mounted by drilling a hole in fixture and welding in place. Clamp handle can be rotated to any position. Supplied with separate handle and base. *User can weld them in desired position.

行程：GH--30519M=59.5mm, GH--30619M=77.8mm

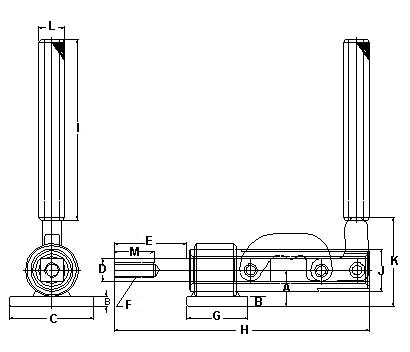

UNIT : mm

Model 型号	Holding Capacity夹持力	Weight自重	Spindle压头螺丝代码	A	B	C	D	E	F	G	H	K	L	M
GH-30519M	1136kg	1640g	GH-SA-125017	30	8	70	19	59.5	M12 P=1.75	50.8	221	152.4	21.7	25.4
GH-30619M	2273kg	3500g	GH-SA-165020	40	11.2	90.5	25	77.8	M16 P=2	68.3	283	152.4	27.2	38.1
